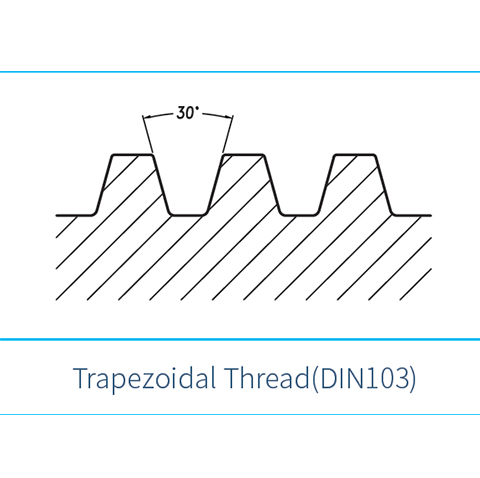

Trapezoidal Thread (DIN103)

Name: Trapezoidal Thread (DIN103)
Brand: SCREW TECHNOLOGY CO.,LTD.
Price: 300 USD
Rating: 4.4 (5 reviews)

Leadscrews are an excellent and reliable way of converting rotary motion into a linear motion. Application criteria such as speed, load and the accuracy of position all have a direct effect on the form and physical size of the lead screw nut assembly design. If you use leadscrews and nuts or perhaps you are considering the product within your designs. We stock lead screws for industrial through to precision applications and have knowledgeable sales staff on hand to help with your selection.

Contact

Specification Of Trapezoidal Thread (DIN103)

Trapezoidal Thread (DIN103)
Diameter（mm）	Screw Lead（mm）	Pitch（mm）	start	R/L hand
2	0.5	0.5	1	R/L hand
3	0.5	0.5	1	R/L hand
	1	1	1	R/L hand
	3	1	3	R/L hand
3.5	0.3	0.3	1	R/L hand
	0.61	0.61	1	R/L hand
	0.8	0.8	1	R/L hand
	1	1	1	R/L hand
	2	1	2	R/L hand
	1.22	1.22	1	R/L hand
	4	1	4	R/L hand
4	1	1	1	R/L hand
	2	1	2	R/L hand
	4	1	4	R/L hand
4.5	0.61	0.61	1	R/L hand
	0.8	0.8	1	R/L hand
	1	1	1	R/L hand
5	0.5	0.5	1	R/L hand
	1	1	1	R/L hand
	2	1	2	R/L hand
	4	1	4	R/L hand
	5	1.25	4	R/L hand
	10	2.5	4	R/L hand
	15	2.5	6	R/L hand
6	1	1	1	R/L hand
	1.5	1.5	1	R/L hand
	2	2	1	R/L hand
	3	1.5	2	R/L hand
	4	2	2	R/L hand
	5	2.5	2	R/L hand
	6	1.5	4	R/L hand
	9	2.25	4	R/L hand
	10	2.5	4	R/L hand
	12	3	4	R/L hand
6.5	3	1.5	2	R/L hand
7	3	1.5	2	R/L hand
8	1	1	1	R/L hand
	1.5	1.5	1	R/L hand
	2	2	1	R/L hand
	3	1.5	2	R/L hand
	4	2	2	R/L hand
	6	1.5	4	R/L hand
	8	2	4	R/L hand
	10	2.5	4	R/L hand
	12	3	4	R/L hand
	14	2	7	R/L hand
	15	2.5	6	R/L hand
	16	2	8	R/L hand
	20	2.5	8	R/L hand
	30	1.25	24	R/L hand
9	4.5	1.5	3	R/L hand
9	17.5	2.5	7	R/L hand
10	1	1	1	R/L hand
	1.5	1.5	1	R/L hand
	2	2	1	R/L hand
	3	3	1	R/L hand
	3	1.5	2	R/L hand
	4	2	2	R/L hand
	5	2.5	2	R/L hand
	6	2	3	R/L hand
	8	2	4	R/L hand
	10	2.5	4	R/L hand
	10	2	5	R/L hand
	12	3	4	R/L hand
	14	2	7	R/L hand
	15	3	5	R/L hand
	16	2	8	R/L hand
	20	3.33	6	R/L hand
	25	5	5	R/L hand
	35	1.25	28	R/L hand
12	2	2	1	R/L hand
	2.5	2.5	1	R/L hand
	3	3	1	R/L hand
	4	2	2	R/L hand
	5	2.5	2	R/L hand
	6	3	2	R/L hand
	8	2	4	R/L hand
	9	3	3	R/L hand
	10	2.5	4	R/L hand
	12	2	6	R/L hand
	15	3	5	R/L hand
	15	2.5	6	R/L hand
	16	3.2	5	R/L hand
	18	3	6	R/L hand
	21	4.2	5	R/L hand
	24	4	6	R/L hand
14	2	2	1	R/L hand
	3	3	1	R/L hand
	4	4	1	R/L hand
	6	3	2	R/L hand
	8	4	2	R/L hand
	10	2.5	4	R/L hand
	12	4	3	R/L hand
	16	4	4	R/L hand
	18	3	6	R/L hand
	28	4	7	R/L hand
	30	5	6	R/L hand
16	2	2	1	R/L hand
	3	3	1	R/L hand
	4	4	1	R/L hand
	5	2.5	2	R/L hand
	8	4	2	R/L hand
	9	4.5	2	R/L hand
	10	2	5	R/L hand
16	16	4	4	R/L hand
	21	3	7	R/L hand
	25	5	5	R/L hand
	35	5	7	R/L hand
18	2	2	1	R/L hand
	4	4	1	R/L hand
	8	4	2	R/L hand
	16	4	4	R/L hand
	18	4.5	4	R/L hand
	24	3	8	R/L hand
	25	2.5	10	R/L hand
	40	5	8	R/L hand
	60	5	12	R/L hand
20	2	2	1	R/L hand
	4	4	1	R/L hand
	8	4	2	R/L hand
	10	5	2	R/L hand
	12	3	4	R/L hand
	16	4	4	R/L hand
	17.5	2.5	7	R/L hand
	18	6	3	R/L hand
	20	4	5	R/L hand
	40	5	8	R/L hand
	45	5	9	R/L hand
	80	5	16	R/L hand
22	3	3	1	R/L hand
	4	4	1	R/L hand
	5	5	1	R/L hand
	6	2	3	R/L hand
	8	4	2	R/L hand
	10	5	2	R/L hand
	10	2.5	4	R/L hand
	16	4	4	R/L hand
	18	3	6	R/L hand
	20	4	5	R/L hand
	24	4	6	R/L hand
22	50	5	10	R/L hand
24	3	3	1	R/L hand
	4	4	1	R/L hand
	5	5	1	R/L hand
	10	5	2	R/L hand
	40	5	8	R/L hand
	55	5	11	R/L hand
25	5	5	1	R/L hand
	10	5	2	R/L hand
	12	6	2	R/L hand
	20	4	5	R/L hand
	25	5	5	R/L hand
	60	5	12	R/L hand
26	3	3	1	R/L hand
	5	5	1	R/L hand
	8	8	1	R/L hand
	8	4	2	R/L hand
	10	5	2	R/L hand
	12	3	4	R/L hand
	12	4	3	R/L hand
	16	4	4	R/L hand
	20	4	5	R/L hand
	24	4	6	R/L hand
	50	5	10	R/L hand
	60	5	12	R/L hand
	75	5	15	R/L hand
28	3	3	1	R/L hand
	5	5	1	R/L hand
	8	8	1	R/L hand
	10	5	2	R/L hand

Diameter（mm）	Screw Lead（mm）
30	3、6、10、12、28、32、50、70
32	3、5、6、12、20、75
33	15、18
34	16
36	6、12、36、200
38	5
40	7、14、30、40
43	24
44	7、12、14
45	8、20
50	8、12
53	30
55	9、14
60	9、14
70	10、16
80	10、16
90	12、18
100	12、16、20
120	14、16、22

For custom high precision lead screw at bulk competitive prices, inquiry now!
