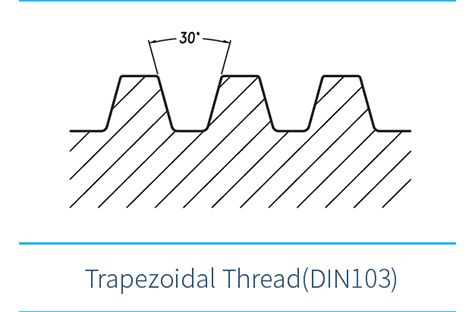

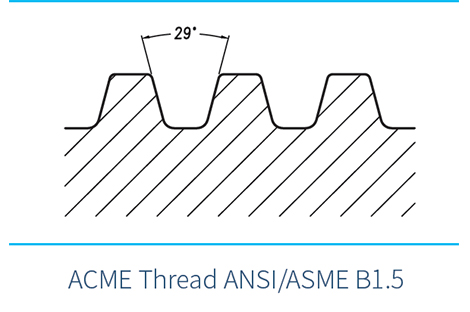

Lead screw nut assembly from VXO are designed for maintenance-free operation and offer an extended service life. Our lead screw nuts are designed with self-lubricating engineered composite plastic materials, eliminating the need for external lubricants and lead screw coatings. In addition to trapezoidal thread and acme thread, we offer a proprietary high helix design that's asymmetrical to our plastic nuts. This design helps optimize lifetime and offers higher efficiency.

Lead Screw Nut Assembly Applications

Lead screw nut assembly is a vital component in various machines and equipment that require linear motion. It is used to convert rotary motion into linear motion, allowing the machine to move in a straight line. Here are some of the most common applications of lead screw nut assembly:

CNC Machines, Automotive, Packaging, Food and Beverage Production.

CNC machines: Linear motion lead screws nut assembly is used in CNC machines to move the cutting tool along the workpiece. It allows for precise and accurate cuts, leading to high-quality finished products.

Automotive: Lead screw nut assemblies are commonly used in automatic transmission systems, where they help to control the shift patterns of the transmission. They are also used in power steering systems, where they help to control the movement of the steering rack.

Packaging: Lead screw nut assemblies are used in filling and sealing machines to ensure that the product is filled and sealed correctly. They are also used in labeling machines to ensure that the labels are applied accurately and consistently.

Food and Beverage Production: Lead screw nut assemblies are used in filling machines to ensure that the products are filled to the correct level. They are also used in packaging machines to ensure that the products are packaged accurately and consistently.

Lead Screw Nut Assembly Applications

Lead Screw Nut Assembly Technology

Lead screw nut assembly technology is a crucial component in various mechanical systems, enabling precise linear motion and efficient power transmission. This innovative technology combines a lead screw, which features a helical thread, with a corresponding nut that engages with the screw's threads. Together, they convert rotational motion into linear motion, providing accuracy, repeatability, and controlled movement.

The lead screw nut assembly technology utilizes different types of threads, such as ACME, square, trapezoidal, or ball screws, depending on the specific application requirements. These threads are precisely machined to ensure smooth interaction and minimize friction, allowing for efficient power transfer and reduced wear.

One of the key advantages of lead screw nut assemblies is their ability to provide precise positioning and motion control. The thread pitch determines the linear distance traveled per revolution, enabling accurate and controlled movement of the nut along the screw. This makes lead screw nut assemblies ideal for applications that require fine adjustments and precise positioning, such as in CNC machines, linear actuators, or positioning systems.

Lead screw nut assembly technology also offers advantages such as high load capacity, self-locking capabilities, and backlash elimination. The design and choice of materials for the nut, such as bronze, steel, or self-lubricating polymers, ensure durability, wear resistance, and reduced friction during operation. Additionally, advancements in manufacturing techniques allow for the production of lead screw nut assemblies with tight tolerances and high precision.

With their versatility and reliability, lead screw nut assemblies are widely used in various industries, including automotive, aerospace, robotics, medical devices, and industrial machinery. They provide essential motion control solutions, enabling smooth and accurate linear motion for critical applications.

How to Select Lead Screw Nut Assembly

Selecting the right lead screw nut assembly requires careful consideration of several factors to ensure optimal performance and compatibility with your specific application. Here are some key steps to help you in the selection process:

  1. Determine your application requirements: Clearly define the requirements of your application, including the desired linear motion characteristics (speed, precision, load capacity), environmental conditions (temperature, humidity, contaminants), and any specific constraints or limitations.

  2. Calculate the required load capacity: Evaluate the maximum load that the lead screw nut assembly needs to support. Consider both static and dynamic loads, taking into account factors such as acceleration, deceleration, and shock loads. Select a nut assembly that can handle the anticipated load range with an appropriate safety margin.

  3. Assess speed and efficiency requirements: Determine the required speed and efficiency of your application. Different types of lead screw nut assemblies have varying efficiency levels and limitations on maximum speed due to factors like friction and heat generation. Consider the desired speed and efficiency and choose an assembly that can meet those requirements.

  4. Evaluate precision and backlash: Consider the level of precision needed for your application. If precise positioning is critical, consider using a lead screw nut assembly with low backlash or one that incorporates preloading mechanisms. Minimizing backlash ensures accurate and repeatable motion control.

  5. Select the appropriate lead screw nut type: Different lead screws nut types, such as ACME threads, square threads, trapezoidal threads, or ball screws, have varying characteristics and performance capabilities. Consider factors such as load capacity, speed, precision, efficiency, and cost to determine the most suitable lead screw nut type for your application.

  6. Consider the environmental factors: Assess the environmental conditions in which the lead screw nut assembly will operate. Factors such as temperature extremes, moisture, chemicals, or particulate contamination can impact the performance and longevity of the assembly. Choose materials and coatings that can withstand specific environmental conditions.

  7. Evaluate maintenance and lubrication requirements: Determine the maintenance and lubrication needs of the lead screw nut assembly. Some assemblies may require periodic lubrication or maintenance to ensure smooth operation and longevity. Consider the accessibility and ease of maintenance for the chosen assembly type.

  8. Seek expert guidance if needed: If you are unsure about the selection process or have complex requirements, consider consulting with experts or manufacturers who specialize in lead screw nut assemblies. They can provide valuable insights and guidance based on their expertise and experience.

By following these steps and considering the specific requirements of your application, you can select the most appropriate lead screw nut assembly that meets your performance, precision, and durability needs.

How Lead Screw Nut Assembly Made

The manufacturing process of a lead screw nut assembly involves several steps to create the threaded nut that interacts with the lead screw. While the exact manufacturing process may vary depending on the specific design and materials used, here is a general overview of how a lead screw nut assembly is made:

  1. Material selection: Choose the appropriate material for the nut based on factors such as load capacity, wear resistance, friction reduction, and environmental compatibility. Common materials include bronze, steel, and self-lubricating polymers.

  2. Machining the blank: Start with a blank piece of the chosen material, typically a cylindrical shape. The blank is secured in a lathe or CNC milling machine.

  3. Turning or milling: The blank undergoes turning or milling operations to shape it into the desired nut design. This involves removing excess material and creating the external geometry of the nut, including the thread profile, flanges, and any additional features required.

  4. Thread cutting: The threaded section of the nut is created using thread cutting techniques. This can be achieved through various methods such as single-point cutting or thread rolling. The method chosen depends on factors such as the nut material, thread pitch, and desired accuracy.

  5. Heat treatment (optional): Depending on the material and desired properties, the nut may undergo heat treatment processes such as annealing, quenching, or tempering to enhance its strength, hardness, or other mechanical properties.

  6. Surface finishing: The nut's surfaces, including the thread and any critical mating surfaces, are carefully finished to ensure smooth operation, reduce friction, and improve wear resistance. This can involve processes such as grinding, polishing, or coating with anti-friction materials.

  7. Inspection and quality control: The completed nut undergoes thorough inspection to ensure dimensional accuracy, thread quality, and adherence to specified tolerances. Quality control measures may include visual inspection, dimensional measurement, and functional testing.

  8. Assembly with lead screw: Once the nut is manufactured and inspected, it is paired with the corresponding lead screw. The nut is carefully aligned and mated with the lead screw, ensuring proper engagement and smooth movement along the thread.

  9. Packaging and shipping: The finished lead screw nut assembly is packaged securely to protect it during transport and storage. It is then shipped to the customer or distributor for integration into the final application.

Throughout the manufacturing process, quality control measures are implemented to ensure the nut meets the required specifications and performance criteria. Advanced manufacturing technologies and precision machining techniques are employed to achieve the desired accuracy, smooth operation, and reliability of the lead screw nut assembly.

Lead Screw Nut Assembly Features

  • Self-lubricating, engineered composite plastic nuts

  • Maintenance-free assemblies

  • No coatings or external lubricants required

  • Higher efficiency rating

  • Proprietary high helix lead screw design for higher speeds and optimize service life

  • Predictable service life
