Sleeve type Single Nut

Sleeve type single Nut

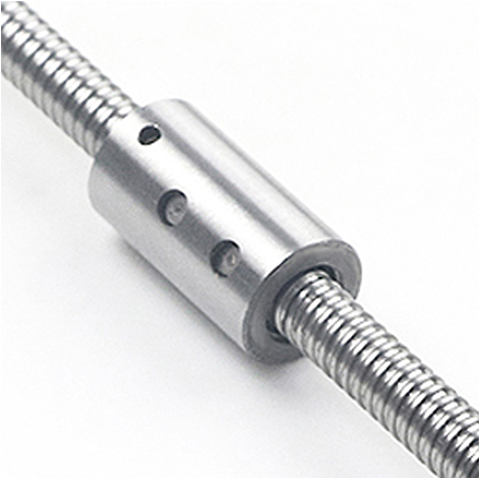

It is Cylindrical Single Nut which is compact. Alike Single Nut with Flange, Axial play can be eliminated(only Precision grade). The Nut should be mounted by clamping on the key way on the Nut outer and Nut end surface.


  • Compact

Since the nut and the support bearing are integrated, a highly accurate, and a compact design is achieved. In addition, small inertia due to the lightweight ball screw nut ensures high responsiveness.

  • Capable of Fine Positioning

Being a Standard-Lead Ball Screw, it is capable of fine positioning despite that the ball screw nut rotates.

  • Accuracy can Easily be Established

As the support bearing is integrated with the outer ring, the bearing can be assembled with the nut housing on the end face of the outer ring flange. This makes it easy to center the ball screw nut and establish accuracy.

  • Well Balanced

Since the deflector is evenly placed along the circumference, a superb balance is ensured while the ball screw nut is rotating.

Contact Us
  • Sleeve type Single Nut
  • Sleeve type Single Nut

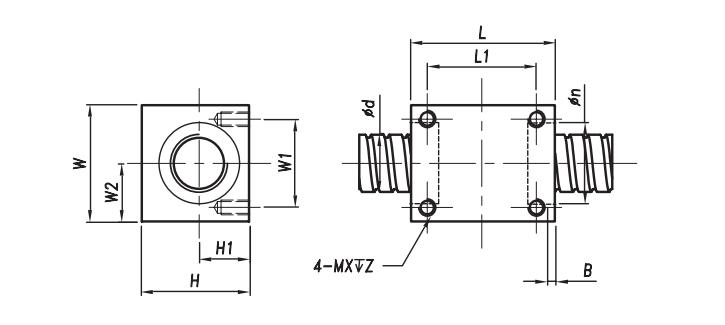

Specification of Cylindrical Nut


cylindrical nut


Model
dLL1WW1W2HH1BnXZDynamic loadStatic loadAxial clearance(mm)
MIS0801
8201516128147410.53678016500-0.005
MIS0802
8201516128147410.53685016000-0.005

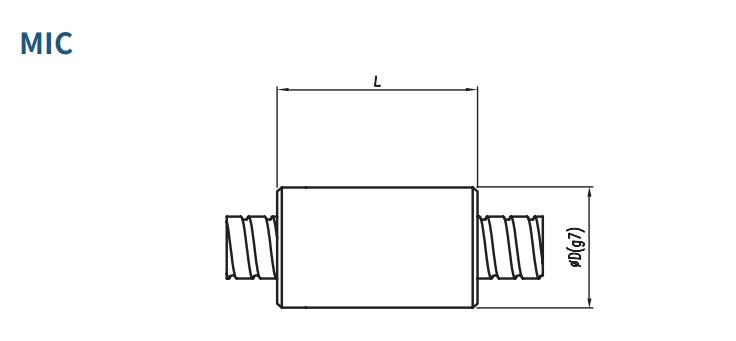

cylindrical connector nuts


Model
DLDynamic loadStatic loadAxial clearance(mm)
MIC0602
121573012100-0.005

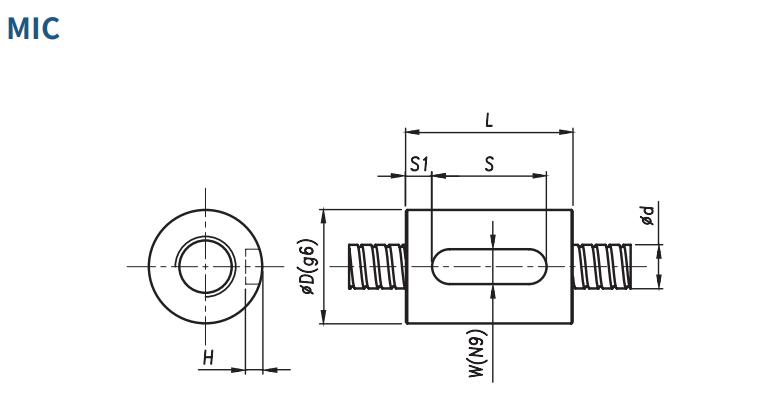

cylindrical nuts with hex socket


Model
dDLSS1WHDynamic loadStatic loadAxial clearance(mm)
MIC0801
8141610331.8135022500-0.005

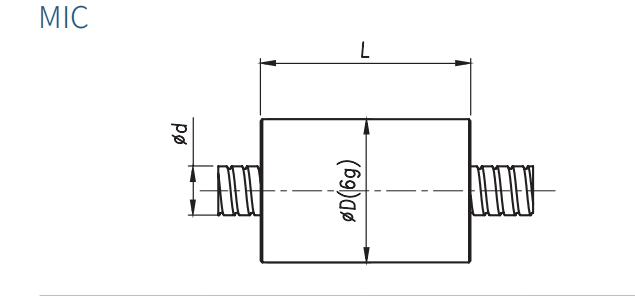

bolt cylindrical nut


ModeldDLDynamic loadStatic loadAxial clearance(mm)
MIC1205122230619088200-0.005
