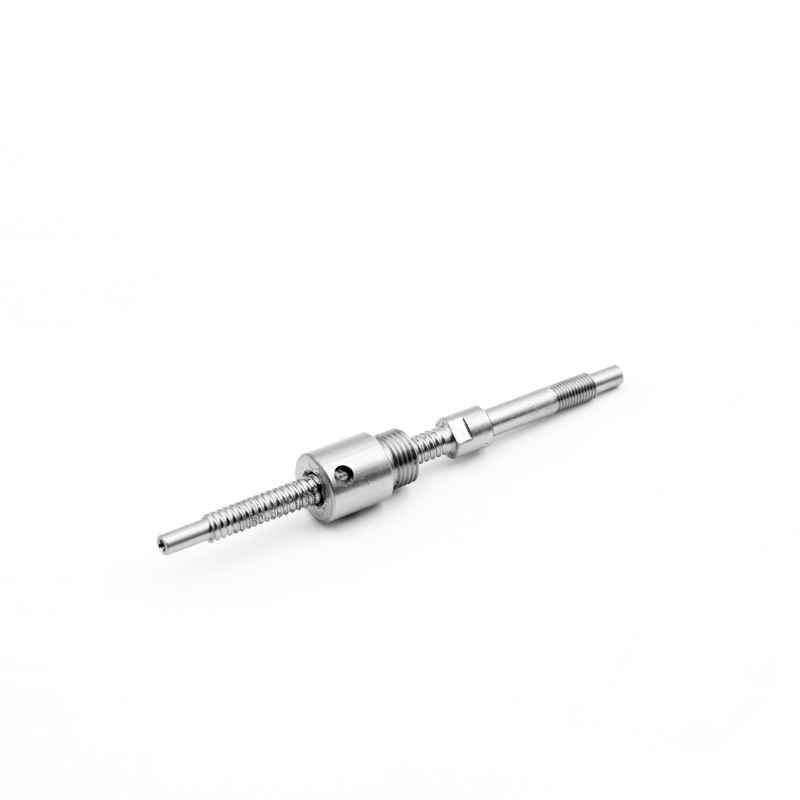

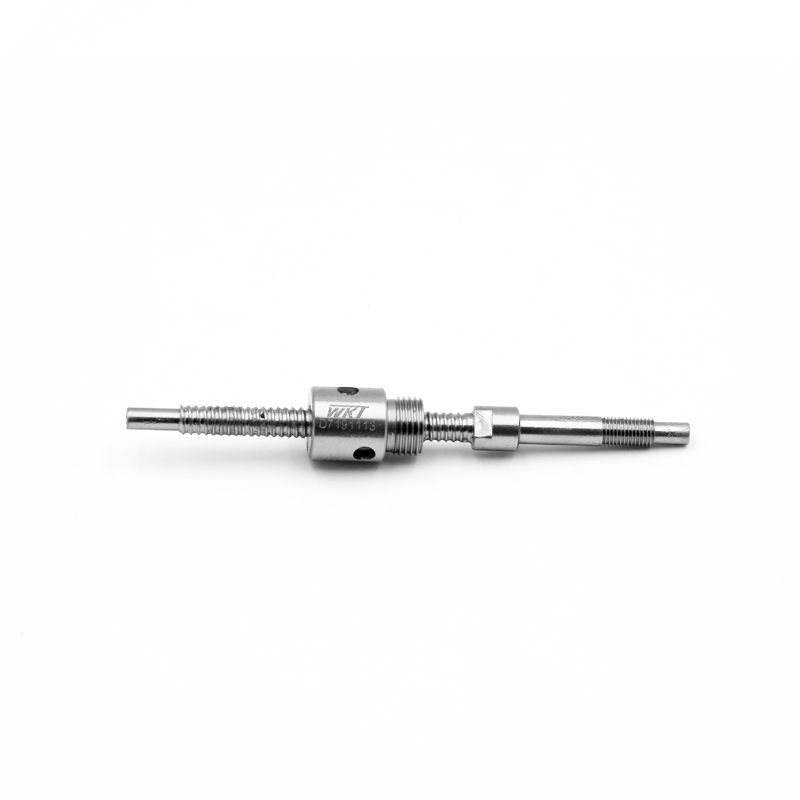

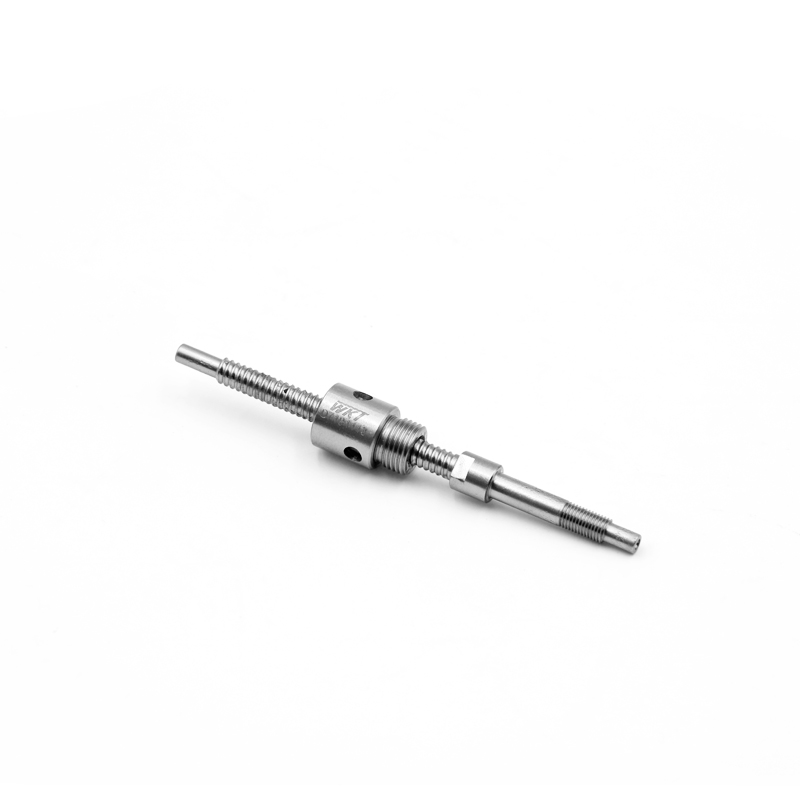

1.Specification of MIA0401 Standard Nut
Mode:diameter 4mm pitch 1mm
Matching Screw: Designed to match the MIA0401 ball screw, ensuring precise fit between the nut and the screw’s thread structure to guarantee stable transmission performance.
Structural Type: Standard nut
Thread Specification: Matches the thread parameters of the MIA0401 ball screw, with a lead consistent with the screw (typically 1mm), ensuring smooth conversion of rotational motion to linear motion without transmission jitter.
Material:Made of high-carbon chromium bearing steel GCr15.This material offer excellent wear resistance and mechanical strength, enabling the nut to withstand repeated friction and load during long-term operation.
Hardness:The surface hardness of the nut’s internal thread is 58-62 HRC. This hardness level ensures sufficient wear resistance to avoid thread damage caused by long-term meshing with the ball screw, thereby extending the service life of the entire transmission pair.
Precision Grade:Corresponding to the precision grade of the matched MIA0401 ball screw C3. It mainly controls indicators such as the internal thread’s pitch error and coaxiality, ensuring that the nut and screw work together to achieve high-precision linear motion without introducing additional transmission errors.
Working Temperature Range: Generally applicable to a temperature range of -20°C to 80°C.
2.Application Scenarios of MIA0401 Standard Nut
Matching MIA0401 Ball Screws in Visual Platforms:As a key component of the MIA0401 ball screw transmission system in small and medium-sized visual platforms (e.g., desktop visual inspection equipment, precision component positioning devices), it cooperates with the screw to drive the visual module (camera, lens) for precise linear movement. Its high precision and stable transmission performance avoid position deviation caused by nut-screw fit errors, ensuring the accuracy of visual detection and positioning results.
Small Precision Automation Equipment: Widely used in small automated equipment that requires compact structure and high precision, such as micro-dispensing machines, small laser engraving machines, and miniature electronic component assembly equipment. The standard nut’s compact design saves installation space, while its high hardness and wear resistance ensure long-term stable operation of the equipment under frequent start-stop and load conditions, improving production efficiency and product quality.
Laboratory Precision Instruments: Applied in precision experimental equipment such as laboratory sample positioning stages, micro-observation platform adjustment mechanisms, and small material testing machines. It cooperates with the MIA0401 ball screw to realize micro-adjustment and precise positioning of components. Its high-precision thread fit ensures that experimental operations (such as sample alignment, microscopic observation) are carried out accurately, avoiding experimental data errors caused by transmission inaccuracies.
Medical Miniature Equipment:Suitable for miniature medical devices with strict requirements on volume and precision, such as small medical diagnostic instruments, micro-surgical auxiliary equipment, and medical sample testing platforms. The standard nut’s compact size adapts to the miniaturized design of medical equipment, and its stable transmission performance ensures the safety and accuracy of medical operations and testing processes.
