Single Nut with M-thread

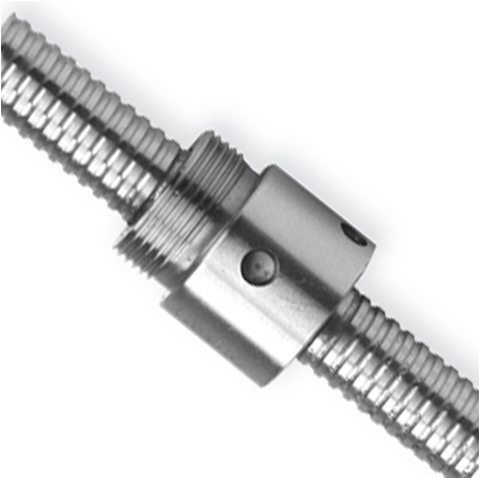

The Cylindrical type with M-thread at the Nut end. The nut should be mounted using M-thread. It is suitable for mounting with cylinder.
High speed, Load-bearing Capacity
Thanks to the ball circulating method supporting high speed and the caged ball technology, the Ball Screw with Ball Cage excels in high speed and load-bearing capacity.
Low Torque Fluctuation
The ballnut technology allows smoother motion than the conventional type to be achieved, thus to reduce torque fluctuation.

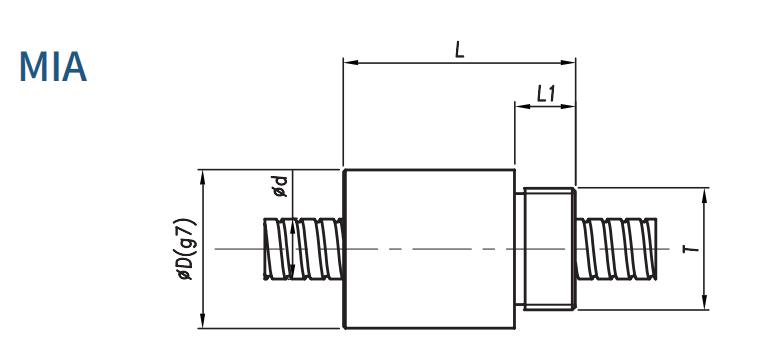

| Model | d | D | L | L1 | L2 | E | T | Dynamic load | Static load | Axial clearance |
| MIA0401 | 6 | 10 | 15 | 5 | - | - | M8x0.75 | 400 | 150 | |
| MIA0601 | 6 | 12 | 16 | 5 | 2 | 10 | M10x1 | 580 | 1000 | |
| MIA0602 | 6 | 12 | 20 | 6 | - | - | M10x1 | 750 | 1200 |

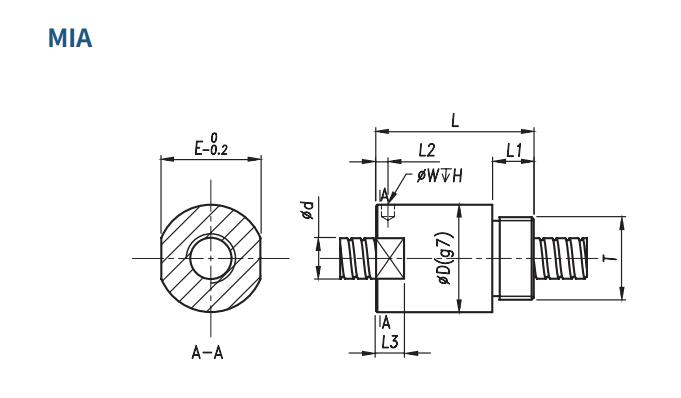

| Model | d | D | L | L1 | L2 | L3 | W | H | E | T | Dynamic load | Static load | Axial clearance |
| MIA0801 | 8 | 16 | 22 | 8 | - | - | - | - | - | M14x1 | 780 | 1650 | |
| MIA0802 | 8 | 16 | 27 | 8 | - | - | - | - | - | M14x1 | 1500 | 2600 | |
| MIA0802.5B | 8 | 17.5 | 23.5 | 7.5 | 3 | - | 3.2 | 2 | - | M15x1 | 1850 | 3000 |

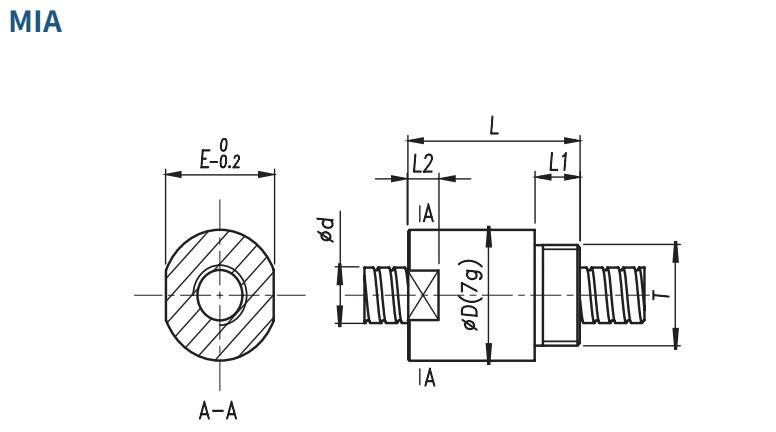

| Model | d | D | L | L1 | L2 | E | H | T | Dynamic load | Static load | Axial clearance |
| MIA1002 | 10 | 19.5 | 22 | 7.5 | 3 | 3.2 | 2.5 | M17x1 | 1950 | 3800 | |
| MIA1004 | 10 | 21 | 30 | 8 | 3 | 3.2 | 3 | M18x1 | 3000 | 5200 |
| Model | d | D | L | L1 | T | Dynamic load | Static load | Axial clearance |
| MIA1204 | 12 | 25.5 | 34 | 10 | M20x1 | 1730 | 3170 | |
| MIA1205 | 12 | 24 | 38 | 10 | M20x1 | 4100 | 9900 | |
| MIA1202 | 12 | 20 | 28 | 10 | M18x1 | 2500-4100 | 3700-7400 |
