GUC1606-3RL-210-252-C3 Precision Ball Screw

Table of Content [Hide]

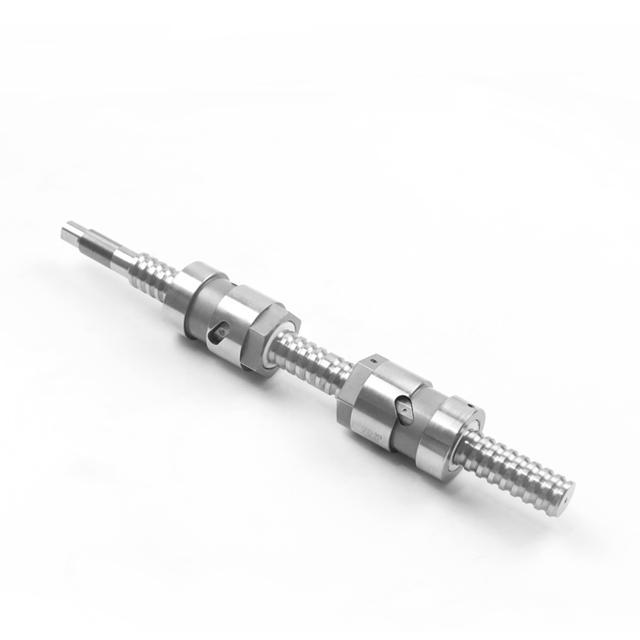

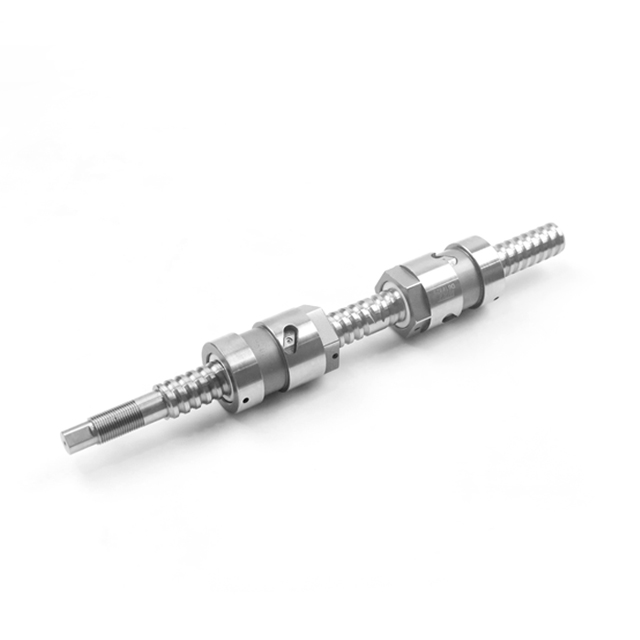

High-Precision Left-Right Hand Ball Screw for Automation & CNC

Introducing our custom GUC1606-3RL-210-252-C3 ball screw – engineered for ultra-precise bidirectional motion control!

✅ Key Specs at a Glance:

16mm diameter, 6mm lead, C3 ISO 3408 precision grade (ultra-high accuracy for micron-level positioning)
Left-right hand (RL) dual nut design for synchronous reverse movement
U-type internal circulation returner, compact cylindrical (C) flange-less nut
3-circuit ball design, 210mm thread length, 252mm total length
5.8~6.5kN dynamic load rating, 8.5~9.5kN static load rating for reliable performance

Perfect for CNC machines, industrial robots, semiconductor equipment, 3D printers, medical devices and any application requiring bidirectional, high-precision linear motion!
