Metric threads are manufactured according to lead screw nut assembly strict specifications defined by the ISO standardisation authority to ensure cross-compatibility between mating components.
Contact

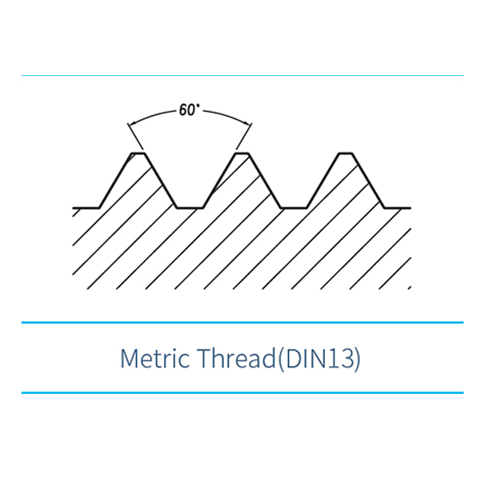

| Metric Thread (DIN13) | ||||||||||||
| Screw Lead Diameter | 0.25 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.75 | 0.8 | 1 | 1.25 | 1.5 | 2 |
| 2 | ◎ | ○ | ||||||||||
| 2.5 | ◎ | ○ | ||||||||||
| 3 | ◎ | ○ | ||||||||||
| 4 | ◎ | ○ | ||||||||||
| 5 | ◎ | ○ | ||||||||||
| 6 | ◎ | ◎ | ○ | |||||||||
| 7 | ◎ | ◎ | ◎ | ○ | ||||||||
| 8 | ◎ | ◎ | ◎ | ○ | ||||||||
| 9 | ◎ | ◎ | ◎ | ○ | ||||||||
| 10 | ◎ | ◎ | ◎ | ○ | ||||||||
For custom high precision lead screw at bulk competitive prices, inquiry now!
