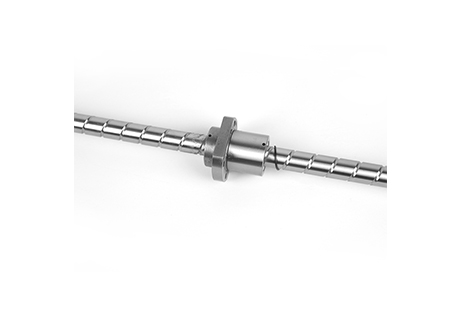

The ball screw nut assembly consists of a screw and a nut, each with matching helical grooves, and balls which roll between these grooves providing the only contact between the nut and the screw. As the screw or nut rotates, the balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the opposite end of the ball nut in a continuous path. The balls then exit from the ball return system into the ball screw and nut thread raceways continuously to recirculate in a ball screw nut assembly closed circuit.

How Does A Ball Screw Nut Assembly Work?

A ball screw works in a similar way to a conventional linear motion lead screws, but the significant advantage of using a ball screw is that it uses ball bearings running in the helical channel to transmit the load.

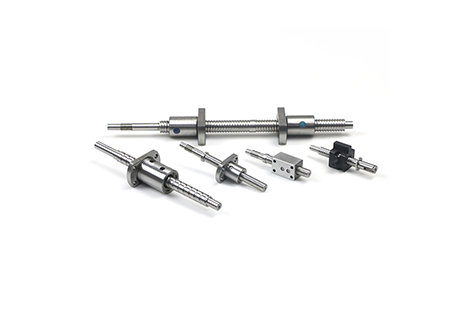

In high precision applications, it is often necessary to translate the rotary motion from a motor to linear motion for the payload. One way of achieving this is by using a precision ball screw and miniature ball screw.

How Does A Ball Screw Nut Assembly Work?

Ball Screw Nut Assembly Benefits&Features

1. High Efficiency: Ball screw nut assembly provides high efficiency and accuracy compared to other types of screw assemblies. It has a low friction coefficient which ensures smooth and efficient operation.

2. High Precision: Ball screw nut assembly provides high precision and repeatability, making it ideal for applications that require accurate positioning.

3. Low Backlash: Ball screw nut assembly has low backlash, which means there is minimal play between the screw and nut. This ensures accurate positioning and reduces the risk of damage to the system.

4. Long Life: Ball screw nut assembly has a longer life span compared to other screw assemblies. This is due to the use of high-quality materials and precision manufacturing techniques.

5. Low Maintenance: Ball screw nut assembly requires minimal maintenance, which reduces downtime and increases productivity.

6. High Load Capacity: Ball screw nut assembly can handle high loads, making it ideal for heavy-duty applications.

7. Quiet Operation: Ball screw nut assembly operates quietly, making it suitable for applications that require low noise levels.

8. Compact Design: Ball screw nut assembly has a compact design, which makes it ideal for applications where space is limited.

9. Easy Installation: Ball screw nut assembly is easy to install and can be integrated into existing systems without the need for major modifications.

10. Cost-effective: Ball screw nut assembly is cost-effective in the long run due to its high efficiency, low maintenance, and long life span.

Custom Ball Screw Assemblies Manufacturer

At VXO, we understand that off-the-shelf Ball Screw solutions may not always address your specific requirements.

That's why our Custom Ball Screw Assemblies service is designed to provide you with a bespoke solution that perfectly aligns with your application.

Whether you need high-load capacity, exceptional accuracy, or specific dimensions, our team of experienced engineers will work closely with you to create a product that exceeds your expectations.

Our state-of-the-art manufacturing facility is equipped with cutting-edge technology, enabling us to produce Custom Ball Screw Assemblies with the highest level of precision and quality.

From concept to completion, we prioritize close collaboration with our clients, ensuring that every aspect of your project is carefully considered and integrated into the final product.

Quality is at the core of everything we do at VXO. Our rigorous testing and quality control procedures guarantee the reliability and performance of our Custom Ball Screw Assemblies.

We adhere to international standards and employ stringent quality management systems to ensure that our products consistently meet the highest industry standards.

When you choose VXO, you can expect exceptional customer service, timely deliveries, and competitive pricing.

We are dedicated to your satisfaction and strive to exceed your expectations at every step of the process.

Whether you have a small-scale prototype project or require large-scale production, our flexible and scalable manufacturing capabilities can accommodate your needs.

Experience the advantages of working with VXO and unlock the true potential of your motion control systems.

Contact us today to discuss your custom requirements and let our expertise and innovation drive your success.

Together, we can achieve precision, efficiency, and reliability like never before.

Ball Screw Nut Assembly Applications

Ball screws are well suited to applications in extreme environments such as high-performance machine tools, or very delicate and sensitive applications including medical devices.

According to ball screw manufacturers, Ball screws are generally suited to applications where the following elements are required:

  • High Efficiency

  • Smooth Motion and Operation

  • High Accuracy

  • High Precision

  • Prolonged continuous or high-speed movement

Some specific applications for ball screw assemblies are:

  • Electric vehicles – the ball screw can be used to replace a common hydraulic system.

  • Wind turbines – ball screw&nut assemblies are used in blade pitch and directional position.

  • Solar Panels – the ball screws help to provide two or three axis movements.

  • Hydro Electric Stations – ball screws are used to control gates.

  • Motorised inspection tables – a ball screw will be used within the mechanism which helps to achieve the desired position of the tables for a given application.

  • Lithography equipment – ball screws are used within step photolithography machines in microscopic integrated circuits.

  • Automotive power steering systems – ball screws are used in automatic steering systems.
