Square type single Nut

Square type single Nut

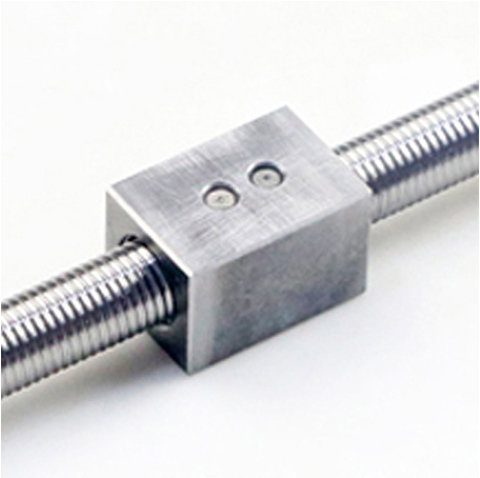

The Square Nut is finished with a large mounting face paraller to the Nut center.

Nut itself has Housing function. This allows for a more compact design compared to Flange type.


  • Stability in the Low-speed Range

With this nut, the motor can be connected independently with the screw shaft and the ballnut, thus to allow micro feeding within the motor's stable rotation range.

  • Smooth Motion

It achieves smoother motion than rack-and-pinion based straight motion.

  • Low Noise even in High-speed Rotation

This nut produces very low noise when the balls are picked up along the end cap.

  • High Rigidity

The support bearing of this model is larger than that of the screw shaft rotational type.

  • Compact

Since the nut and the support bearing are integrated, a highly accurate, and a compact design is achieved.

  • Easy Installation

By simply mounting this model to the housing with bolts, a ball screw nut rotating mechanism can be obtained.

Contact Us
  • Square type single Nut
  • Square type single Nut

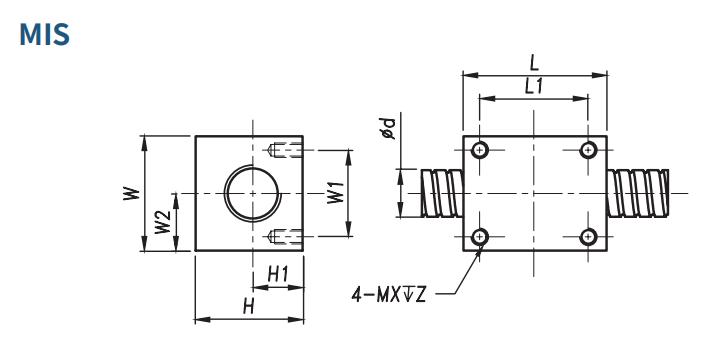

Specification of Square Nut

double nut


Model
dLL1WW1W2HH1XZDynamic loadStatic loadAxial clearance(mm)
MIS0601
61612141071262.5566011100-0.005
MIS0602
620151386.5115.52.5575012000-0.005

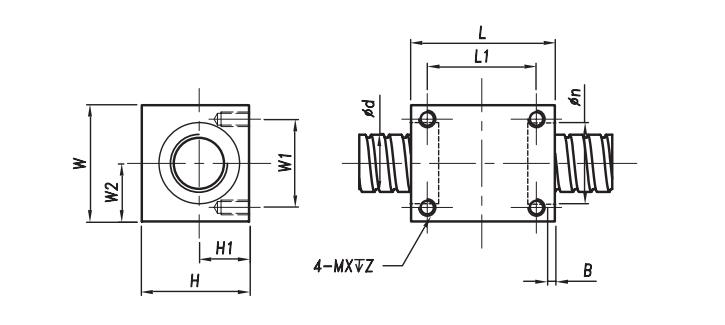

double threaded nut


Model
dLL1WW1W2HH1BnXZDynamic loadStatic loadAxial clearance(mm)
MIS0801
8201516128147410.53678016500-0.005
MIS0802
8201516128147410.53685016000-0.005
