VXO Linear Technologies offers manufactures a wide array of lead screw nut and acme lead screw nut options in materials including POM, Peek, Torlon, Acetal and Nylon, and metal - including bronze, brass, stainless, and alloy steel. We offer anti-backlash nuts, sleeve nuts, bronze nuts, heavy-load nuts, trunnion mounting nuts, and more -- all linear lead screw with multiple styles, sizes, and material options. Or, we can manufacture custom lead screw nuts to meet your specific linear motion application needs.

Lead Screw Nut Features

To meet the need for economical solutions in the field of linear motion control systems, VXO offers two standardized lines of lead screws and nuts in addition to the made-to-order lead screw and nut assembly built to meet individual customer specifications and tolerances.

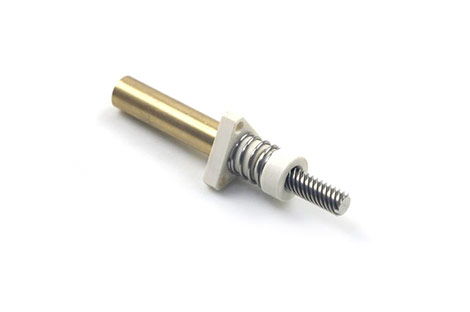

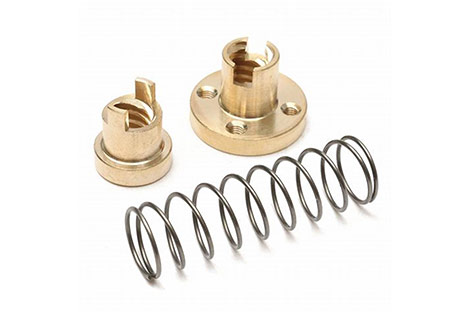

VXO Anti-Backlash Lead Screw Nuts and Lead Screws

Rolled Acme stainless steel lead screws come in commercial and precision quality.

Depending on the application, acme lead screws are available in lead accuracies from .003 in/ft with straightness of .01 in/ft to .0001 in/in with positional repeatability of .00005 inches.

Lead Screw Nut Features

Lead Screw Nut Material

Lead screw nuts can be made from various materials depending on the application and requirements. Some common lead screw nut materials include:

1. Brass: Brass is a popular choice for lead screw nuts because of its good wear resistance and corrosion resistance.

2. Bronze: Bronze is also a popular choice for lead screw nuts because of its good wear resistance and self-lubricating properties.

3. Plastic: Plastic lead screw nuts are commonly used in low-load applications because of their low cost and self-lubricating properties. The common material like POM, PEEK.

4. Steel: As part of motion control products, steel lead screw nuts are used in high-load applications because of their high strength and durability.

5. Aluminum: Aluminum lead screw nuts are used in applications where weight is a concern, such as in aerospace and automotive industries.

Pom VS Brass Lead Screw Nut

When comparing POM (Polyoxymethylene) and brass lead screw nuts, there are some notable differences in their properties and performance. POM is a thermoplastic material known for its low friction, high stiffness, and excellent wear resistance. On the other hand, brass is a metal alloy composed mainly of copper and zinc, which is commonly used in various applications.

POM Lead Screw Nuts POM has been praised for its superior qualities compared to brass in terms of its suitability for this type of application. It offers better wear resistance and requires less lubrication. POM's low friction properties can lead to increased efficiency and reduced backlash. Some individuals have shared positive experiences after installing POM lead screw nuts, mentioning their efficiency and serviceability.

Brass Lead Screw Nuts While brass is commonly used in various applications, it may not be the ideal material for lead screw nuts due to its tendency to wear quickly, even with proper lubrication. However, it's worth noting that brass lead screw nuts are more widely available compared to other options.

POM lead screw nuts offer several advantages over brass nuts in terms of wear resistance, friction properties, and lubrication requirements. These factors contribute to their efficiency and serviceability. On the other hand, brass nuts may be more readily accessible but might wear out relatively quickly.

It is important to consider the specific requirements and conditions of your application when choosing between POM and brass lead screw nuts. If you prioritize low friction, high stiffness, and excellent wear resistance, POM lead screw nuts might be a more suitable choice. However, if availability and accessibility are primary concerns, brass nuts may be a viable option. It's always beneficial to consult with experts or experienced individuals in your specific field or industry to gather more insights and make an informed decision based on your unique requirements.

Lead Screw Nut Selection

When selecting a lead screw nut for your application, it's important to consider various factors to ensure optimal performance and compatibility. Here are some key aspects to consider:

  1. Compatibility with the Lead Screw: Ensure that the lead screw nut is compatible with the corresponding lead screw. Consider the thread type (ACME, square, trapezoidal, ball screw, etc.), thread pitch, and dimensions to ensure proper fit and engagement.

  2. Load Capacity: Evaluate the maximum load the lead screw nut needs to support in your application. Consider both static and dynamic loads, including factors such as acceleration, deceleration, and shock loads. Choose a nut with the appropriate load capacity to handle the expected loads with an appropriate safety margin.

  3. Speed and Efficiency: Determine the required speed and efficiency of your application. Different lead screw nut designs have varying efficiency levels and speed limitations due to factors like friction and heat generation. Consider the desired speed and efficiency, and select a nut that can meet those requirements.

  4. Precision and Backlash: Consider the level of precision required for your application. If precise positioning is critical, choose a lead screw nut assembly with low backlash or incorporate preloading mechanisms to minimize any free movement or play in the nut. This ensures accurate and repeatable motion control.

  5. Environmental Considerations: Evaluate the environmental conditions in which the lead screw nut assembly will operate. Factors such as temperature extremes, moisture, chemicals, or particulate contamination can affect the performance and longevity of the assembly. Choose materials and coatings that can withstand specific environmental conditions.

  6. Lubrication and Maintenance: Consider the lubrication requirements of the lead screw nut assembly. Some nut materials may require periodic lubrication to ensure smooth operation and prolong the assembly's life. Evaluate the ease of maintenance and lubrication access based on your application's specific needs.

  7. Noise and Vibration: Assess the desired noise and vibration levels in your application. Different lead screw nut designs can have varying levels of noise and vibration characteristics. Consider options that provide quieter and smoother operation if noise and vibration reduction are critical.

  8. Material Selection: Choose the appropriate nut material based on factors such as load capacity, wear resistance, friction reduction, and compatibility with the application environment. Common materials include bronze, steel, and self-lubricating polymers.

  9. Cost: Consider the overall cost, including the initial investment and any ongoing maintenance or replacement costs associated with the lead screw nut assembly. Balance the performance requirements with the available budget to select the most cost-effective solution.

It's often beneficial to consult with manufacturers or specialists in lead screw nut assemblies to discuss your application's specific requirements and obtain expert guidance. They can provide valuable insights and recommend the most suitable lead screw nut for your application, ensuring optimal performance, longevity, and reliability.

Lead Screw Nut Benefits

  • Large load carrying capability

  • Compact

  • Simple to design

  • Easy to manufacture; no specialized machinery is required

  • Large mechanical advantage

  • Precise and accurate linear motion

  • Smooth, quiet, and low maintenance

  • Minimal number of parts

  • Most are self-locking
