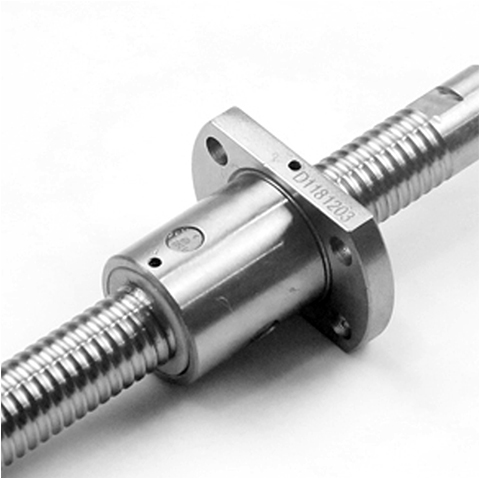

Single Nut with Flange
It is the most simple Single Nut type. Normally Ball Screws are used with small Axial play, but using oversized Balls allows for the application of light preloading and eliminates backlash(only Precision grade). Nut should be mounted using bolt holes in Flange. FBS, MRB(Return-plate), FKB(Internal-deflector), FDB(End-deflector), FEB(End-cap) circulation system can be distinguished. Please refer to dimension table.
Low Noise, Acceptable Running Sound
The use of the ball cage eliminates the collision noise between the balls. Additionally, as balls are picked up in the tangential direction, the collision noise from the ball circulation has also been eliminated.
Long-term Maintenance-free Operation
The friction between the balls has been eliminated, and the grease retention has been improved through the provision of grease pockets. As a result, the long-term maintenance-free operation (i.e., lubrication is unnecessary over a long period) is achieved.
Smooth Motion
The use of a ball cage eliminates the friction between the balls and minimizes the torque fluctuation, thus allowing the smooth ballnut motion to be achieved.
Contact

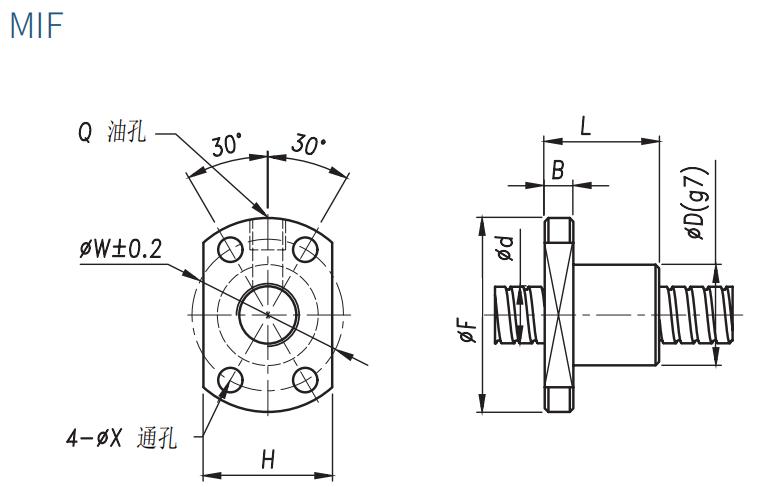

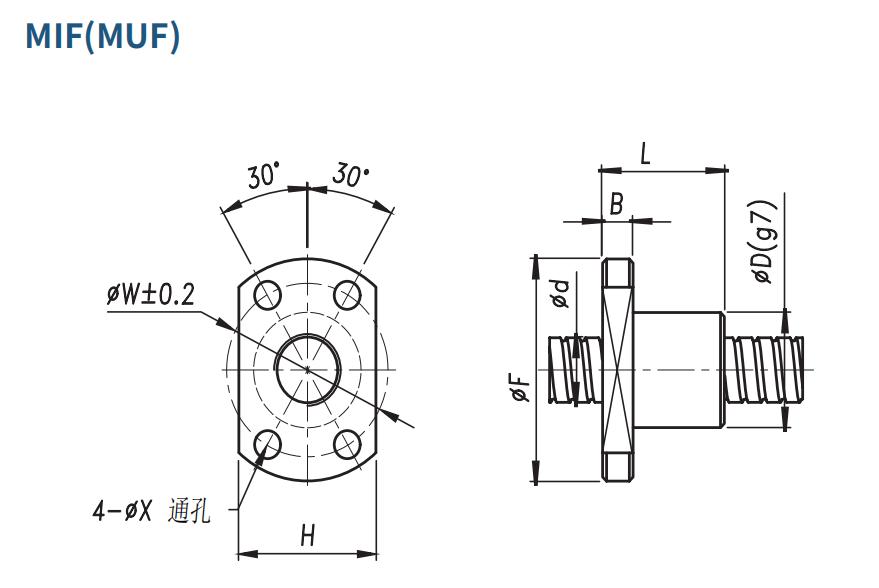

| Model | d | D | F | L | B | W | H | X | Dynamic load | Static load | Axial clearance |
| MIF0401 | 4 | 10 | 20 | 12 | 3 | 15 | 14 | 2.9 | 490 | 700 | |
| MIF0501 | 5 | 10 | 20 | 12 | 3 | 15 | 14 | 2.9 | 530 | 810 | |
| MIF0601 | 6 | 12 | 24 | 15 | 3.5 | 18 | 16 | 3.4 | 580 | 1000 | |
| MIF0602 | 6 | 12 | 24 | 15 | 3.5 | 18 | 16 | 3.4 | 750 | 1200 | |
| MIF0801 | 8 | 14 | 27 | 16 | 4 | 21 | 18 | 3.4 | 780 | 1650 | |
| MIF0802 | 8 | 14 | 27 | 16 | 4 | 21 | 18 | 3.4 | 1500 | 2600 | |
| MIF0802.5 | 8 | 16 | 29 | 26 | 4 | 23 | 20 | 3.4 | 1850 | 3000 | |
| MUF0804 | 8 | 16 | 29 | 26 | 4 | 23 | 20 | 3.4 | 2350 | 3300 |
| Model | d | D | F | L | B | W | H | X | Q | Dynamic load | Static load | Axial clearance |
| MIF1002 | 10 | 18 | 35 | 28 | 5 | 27 | 22 | 4.5 | - | 1500 | 2600 | |
| MIF1003 | 10 | 20 | 37 | 32 | 6 | 29 | 24 | 4.5 | - | 2600 | 5200 | |
| MIF1004 | 10 | 20 | 37 | 38 | 8 | 29 | 24 | 4.5 | M5 | 3000 | 5200 |
| Model | d | D | F | L | B | W | H | X | Dynamic load | Static load | Axial clearance |
| MIF1201 | 12 | 20 | 37 | 28 | 5 | 29 | 24 | 4.5 | 780 | 1600 | |
| MIF1202 | 12 | 20 | 37 | 28 | 5 | 29 | 24 | 4.5 | 3000 | 6000 | |
| MIF1203 | 12 | 22 | 39 | 32 | 6 | 31 | 26 | 4.5 | 3650 | 9900 | |
| MIF1204C | 12 | 24 | 40 | 28 | 6 | 32 | 25 | 3.5 | 4100 | 9900 | |
| MIF1205 | 12 | 22 | 43 | 38 | 8 | 31 | 26 | 4.5 | 6190 | 8830 |
| Model | d | D | F | L | B | W | H | X | Q | Dynamic load | Static load | Axial clearance |
| MIF1402 | 14 | 21 | 40 | 23 | 6 | 31 | 26 | 5.5 | - | 2890 | 6330 | |
| MIF1403 | 14 | 24 | 41 | 32 | 6 | 33 | 28 | 5.5 | - | 2900 | 4600 | |
| MIF1404 | 14 | 26 | 45 | 33 | 6 | 36 | 28 | 5.5 | - | 4500 | 8600 | |
| MIF1405 | 14 | 26 | 46 | 40 | 8 | 36 | 30 | 5.5 | - | 5700 | 11600 | |
| MIF1602 | 16 | 25 | 43 | 40 | 10 | 35 | 29 | 5.5 | M6 | 3730 | 12000 | |
| MIF2002 | 20 | 30 | 50 | 40 | 10 | 40 | 35 | 5.5 | M6 | 5810 | 22840 |
