Miniature Ball Screw

Name: Miniature Ball Screw
Brand: SCREW TECHNOLOGY CO.,LTD.
Price: 300 USD
Rating: 4.4 (5 reviews)

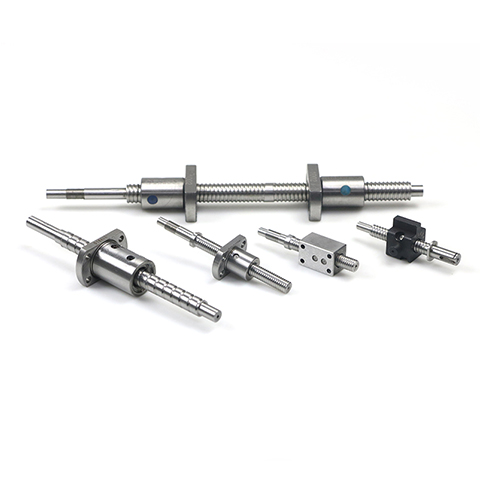

Miniature Ball Screws are an efficient and cost-effective solution in a small envelope, ideal for use in small spaces. Ball screw nut assembly range from 4 to 14mm in diameter with leads from 1 to 20mm - all with standard lead accuracies of ±52µm/300mm. Miniature Rolled Ball Screws are ideal for laboratory, semiconductor, and medical applications.

Contact

VXO Ball Screw Nut Assembly

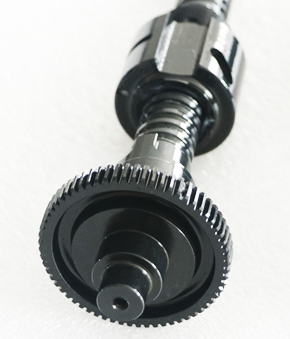

Customized Cylindrical Nut Assembly

Flange Nut Assembly

Thread Nut Assembly

Square Nut Assembly

Cylindrical Nut Assembly

Customized Cylindrical Nut Assembly

Miniature Ball Screw Specifications

Ball Screw lead accuracy conforming to JIS B1192 is specified by the tolerance of actual mean travel amount, or Screw Shaft effective length, travel variation and travel variation within arbitary 1 revolution over the Screw Shaft effective lentgh. Tolerance of each accuracy grades are shown in the Table.

Nominal travel: Travel in axial direction when rotated arbitrary number of revolution according to the Nominal lead.

Specified Lead: Lead given some amout of correction to the Nominal lead in order to compensate the deformation generated due to the temperature rise or the load.

Raw Material		Surface Finishing
GCr15		chrome plate (CR)
SS440C		tungsten disulfide coating (WS)
SS316		molybdenum disulfide (MS)
SS316L		Low temperature black chrome plating (BR)
SS304		black coating (BL)

VXO Available Ball Screw Model

VXO Available Ball Screw Model
Diameter(mm)	Lead(mm)
Diameter(mm)	1	2	2.5	3	4	5	6	8	10	12	16
4	√	√			√
5	√	√
6	√	√		√	√		√
8	√	√	√	√	√	√	√	√
10	√	√	√	√	√		√	√	√
12	√	√		√	√	√	√	√	√
14		√		√	√	√
16		√			√	√			√		√
20		√		√	√	√	√	√	√
25		√		√	√	√	√	√	√	√
