MIF 0401 Ball Screw 4mm diamter 1mm pitch

Table of Content [Hide]

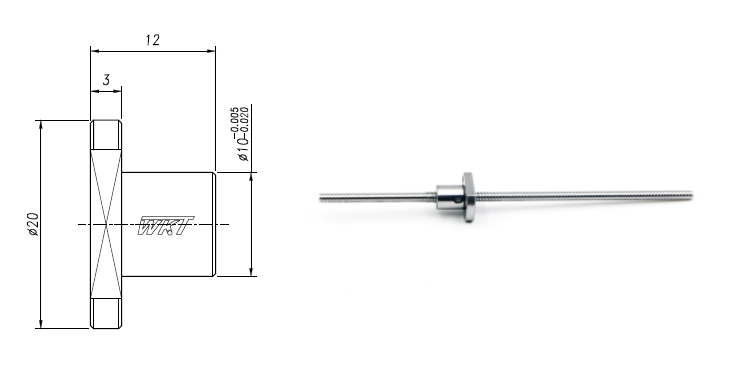

    MIF0401 Ball Screw 4mm diamter 1mm pitch  4mm-diamter-1mm-pitch-ball-screw.jpg


    Diameter: 4mm Screw Lead: 1mm

    Material: Bearing Steel GCr15, hardness 58-62

    Material: Stainless Stell SUS440C, hardness 53-58

    Static Load Rating: 700N

    Dynamic Load Rating: 490N

    Axis Play: 0-0.005mm

    Number of thread: 1

    Thread direction: right/left

    Anti-rust treatment: Anti-rust oil

    Travel deviation accuracy: ep ±0.008mm

    Variation Vu: 0.008mm

    Application: Delta robot, Medical instructment
