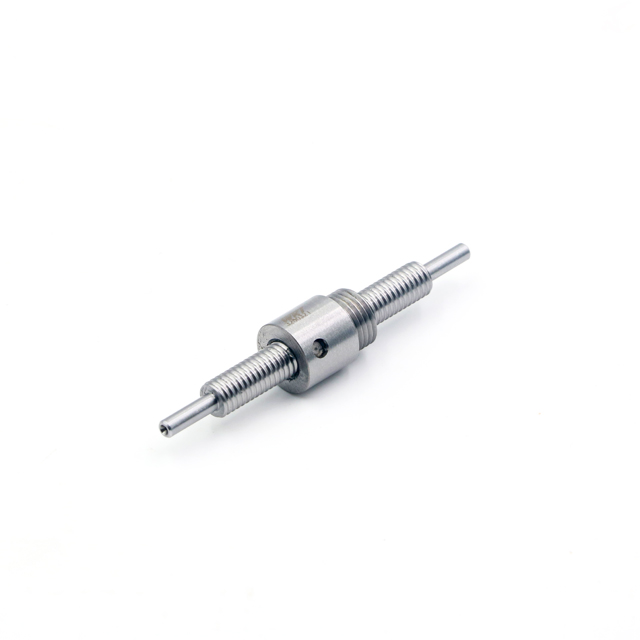

Among the core transmission components of industrial automation equipment, the selection of ball screws directly determines the precision, service life and operational stability of the equipment. Many engineers tend to fall into misunderstandings when matching lead and load parameters during selection, resulting in issues such as precision drift and excessive wear in later operation.
Through serving thousands of customers, we have summarized several frequently encountered selection pitfalls, hoping to help you avoid them.
Misconception 1: Focusing only on lead while ignoring the dynamic load rating
Many people assume that a larger lead means higher speed, so they blindly choose ball screws with a large lead, yet overlook the critical parameter of dynamic load rating. For example, a ball screw with a 20mm lead may have a dynamic load rating of only 15kN, whereas one with a 10mm lead can reach 25kN. If the actual load of the equipment is 20kN, selecting the 20mm lead screw will result in the load exceeding the rated value, thus shortening its service life.
It should be noted that the dynamic load rating is the indicator of the dynamic load a screw can withstand over a long period. The actual load must not exceed 80% of this value — this is a strict red line that must be observed during selection.
Misconception 2: Only calculating axial force in load analysis, while ignoring radial force and allowable static moment parameters
Many engineers only consider axial thrust or tension when calculating loads, but neglect radial forces and moment loads existing in actual working conditions. For instance, the ball screw in a machine tool spindle is subject to not only axial cutting force but also radial vibration force, as well as moments Mx (moment about X-axis), My (moment about Y-axis), and Mz (moment about Z-axis).
If these parameters are not satisfied, the screw may bend and deform, impairing positioning accuracy.
For example: A device has an axial load of 10 kN, but its Mz moment reaches 5 kN·m, while the allowable static moment Mz of the screw is only 3 kN·m. In this case, the screw will still be damaged even if the axial load is within range.
Therefore, during selection, axial load, radial load, and allowable static moments in three directions must all be verified simultaneously.
Misconception 3: Mismatching Lead and Accuracy Class Parameters
The selection of lead must be matched with the accuracy class (C / H / P), rather than focusing on lead alone. For example, the lead deviation over any 300mm length of an H-class screw is approximately 8μm, while that of a C-class screw is 23μm. If the equipment requires positioning accuracy within 10μm, choosing a C-class screw with 20mm lead will fail to meet the requirement due to excessive lead deviation.
It should be noted that the lead deviation corresponding to each accuracy class is critical. P-class is suitable for high-precision equipment (3.5μm/300mm), H-class for medium-to-high precision (8μm), and C-class for general precision (23μm). These parameters should be selected based on the actual accuracy requirements of the equipment.
Misconception 4: Mismatching Preload Class and Load Parameters
Preload classes are divided into light preload, medium preload, and heavy preload, each corresponding to different load requirements. Light preload is suitable for low-load (within 0.02 times the dynamic load rating) and high-speed applications; medium preload for medium loads (0.03 to 0.05 times); and heavy preload for loads requiring high rigidity (0.06 to 0.08 times).
Many users simply apply heavy preload regardless of the actual load, leading to excessive wear of the screw. Conversely, using light preload under heavy load results in insufficient rigidity. For example, if the equipment load is 0.04 times the dynamic load rating, medium preload is the appropriate choice. Using light preload would cause backlash and compromise positioning accuracy.
Therefore, attention must be paid to the load ratio corresponding to each preload class during selection.
Misconception 5: Ignoring the impact of operating environment on load parameters
Environmental factors also affect the selection of load parameters. For example, ball screws are prone to rust in humid environments. Although Hi-Coating surface treatment can improve corrosion resistance, it is not a standard option, so more attention should be paid to adjusting lubrication parameters.
In high-humidity conditions, the grease replenishment interval should be shortened (from every 100 km to every 80 km). Otherwise, lubrication performance will degrade and load capacity will decrease.
In addition, the dynamic load rating of ball screws will be reduced in high-temperature environments (load capacity drops by 5% for every 10°C increase in temperature). Adjustments to load parameters corresponding to such environmental conditions are also often overlooked during selection.
Misconception 6: Mismatching Lead and Rotational Speed Parameters
Lead selection must also take speed limits into account. For instance, a ball screw with a 25 mm lead may have a critical speed of only 1000 rpm, while one with a 10 mm lead can reach 2000 rpm. If the equipment requires a speed of 1500 rpm, choosing the 25 mm lead screw will exceed its critical speed and cause resonance.
It should be noted that critical speed is an inherent parameter of the ball screw, determined by its nominal diameter and length. During selection, critical speed must be calculated to ensure the speed corresponding to the lead stays within a safe range.
In summary, when selecting a ball screw, the matching of lead and load requires comprehensive consideration of multiple parameters, including dynamic load rating, radial load, allowable static moment, accuracy class, preload class, and critical speed.
